Pool Table Rails & Cushions
Learn how to recognize dead rails, test cushion response, understand K-66, K-55 and U-23 profiles, and determine when professional cushion replacement is needed.
How to Test Your Pool Table Cushions
Before assuming the rubber needs replacement, compare the response around the entire table.
Compare All Six Rails
Using the same ball and a similar stroke, test several locations on every cushion. Listen to the sound and compare rebound speed. One slow shot by itself does not prove a cushion is bad.
Perform a Careful Physical Check
Press gently through the rail cloth at several locations. Healthy rubber should feel reasonably consistent. Hard, brittle, unusually soft, loose or uneven areas can indicate deterioration or separation.
Watch the Ball Response
- Weak or shortened rebounds
- Dead spots along a rail
- Inconsistent bank angles
- Unexpectedly hard or fast rebounds
Listen & Look
- Dull or hollow impact sound
- Raised or wavy rail cloth
- Loose rubber beneath the cloth
- Different response from one rail to another
Not Every “Dead Rail” Is Bad Rubber
Loose rail bolts, damaged wood, incorrect cushion nose height, improper rail installation, loose cloth or other setup problems can create similar symptoms. The complete rail assembly should be evaluated before replacement is recommended.

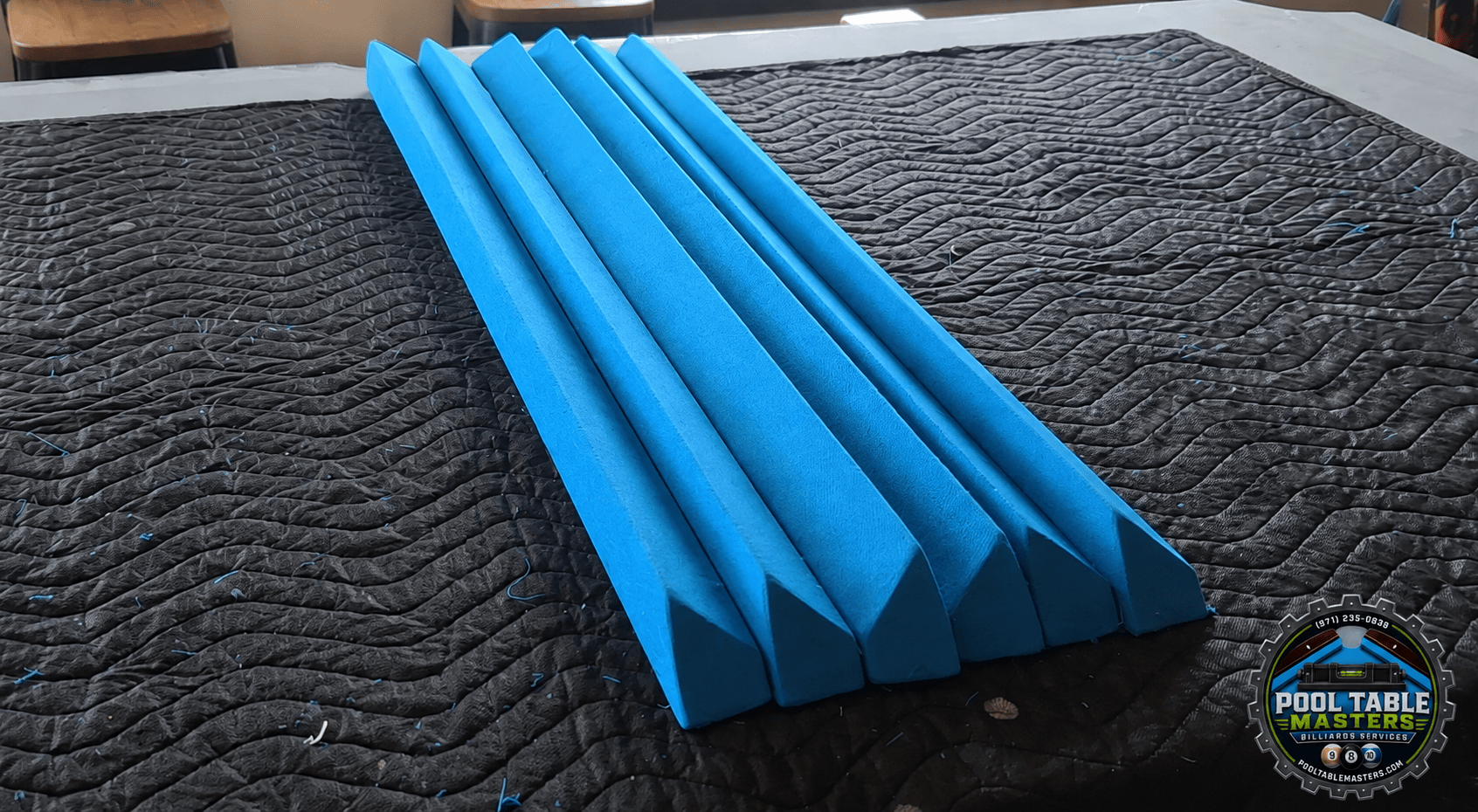

Understanding Pool Table Cushion Profiles
A cushion profile describes the shape and dimensions of the rubber where it attaches to the wooden sub-rail. The profile helps position the cushion nose at the proper height and angle against the ball. These profiles are not automatically interchangeable.
K-66
One of the most commonly encountered profiles on residential and commercial pool tables. Many later Valley replacement rail assemblies use K-66, but that does not make it correct for every table.
K-55
A different mounting geometry from K-66. K-55-style systems are associated with many Brunswick Gold Crown and Diamond tables. Exact requirements still depend on model and construction.
U-23
An older profile found on certain older and coin-operated tables. It should not automatically be replaced with K-66 simply because K-66 is easier to obtain.
How Do You Identify the Correct Cushion?
A photo of an assembled table usually is not enough. Identification may require several pieces of information.
Table Information
- Manufacturer
- Model or model number
- Approximate production year
- Table size
Rail Information
- Rail and sub-rail construction
- Existing cushion shape and dimensions
- Cushion nose height
- Evidence of previous modification
The Existing Rubber May Already Be Wrong
Identifying what is currently installed is only part of the job. A previous owner or technician may have fitted the wrong profile, so the table’s intended rail geometry also needs to be considered.
Common Manufacturer Examples
These are general examples, not universal rules. Always verify the actual table and rail construction.
Why Cushion Replacement Is Precision Rail Work
Correct Geometry Matters
The replacement rubber must match the sub-rail and place the cushion nose at the correct height and angle. Incorrect geometry can change rebound behavior even with brand-new rubber.
Cutting & Pocket Work Matter
The rubber ends and cushion facings must be cut and shaped carefully so all six pockets play consistently. Small errors can affect banks and how balls enter the pockets.
Preparation Matters
Old material must be removed, the wooden mounting surface prepared, new cushions aligned and bonded correctly, and adequate curing time allowed.
Rail Cloth Matters
The rail cloth has to be removed to access the rubber and then installed correctly after the cushion work. This is one reason cushion replacement pairs naturally with refelting.
Should All Six Cushions Be Replaced?
In most situations, a complete matched set is preferable. Cushions of the same age have usually experienced similar use and environmental conditions. Replacing only one can leave one rail responding differently from the other five.
The Best Time to Replace Cushions
If the table also needs new cloth, doing both services together is usually the most economical approach. The rail cloth already has to come off for cushion replacement, and the rails, facings, pocket openings and attachment points can be evaluated at the same time.
How Long Do Pool Table Cushions Last?
There is no universal replacement schedule. Cushion life depends on rubber quality, table construction, frequency of use, temperature and humidity, sunlight or heat exposure, storage conditions and the quality of the original installation.
Age alone does not prove cushions are bad. Some older cushions remain responsive, while lower-quality, poorly stored or improperly installed rubber can fail much sooner.
Pool Table Cushion Replacement Pricing
Final pricing depends on table manufacturer, size, cushion profile, rubber selection, rail condition, pocket construction and whether the work is combined with new cloth. For many tables, combining cushion replacement with scheduled refelting avoids duplicating rail-cloth labor.
Professional Rail & Cushion Inspection
Pool Table Masters provides cushion testing, profile identification, rail inspection, cushion replacement, rail-cloth installation and pocket-related repairs throughout the Portland Metro area, Southwest Washington and surrounding areas.
If your table has dead rails, inconsistent rebounds or cushions of unknown age, send us the manufacturer, table size, location, model information if available and photos. We can help determine what the table actually needs before recommending replacement.
